These stabilisers are designed to work in a dusty environment and inherently have short term overload capacity. The stabilisers need not be over rated for short term overload conditions.
Can be used in all areas where air colled stabiliser are used if the area is dusty like a textile mill or a cement factory.
Oil cooling is recommended for very high rating Servo stabiliser to improve the efficiency of cooling and also.
In a very dusty place like spinning mills, cement factories and areas where flammable fumes may be present.

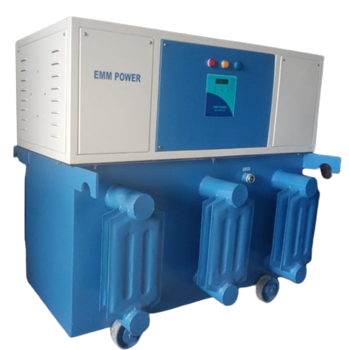

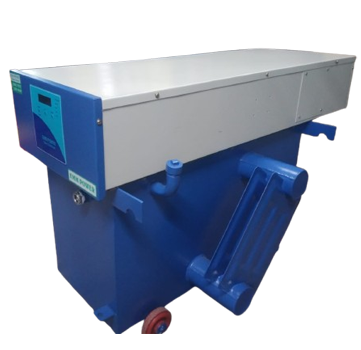

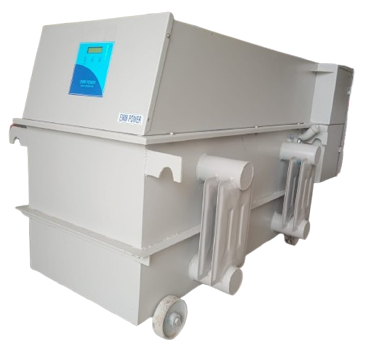

Three Phase Servo Oil cooled Industrial
Microcontroller based control system.
RMS Correction
Display Parameters (Single line 4 Digits )
LCD Display
Input Voltage
Output Voltage
Output Current
Frequency
Stabilizer Status
No user setting
Input Voltage Range & Regulation Range
196 V - 280 V (Phase to Netural) 340 V - 480 V (Line to Line)
Output Voltage
240 V +/- 1% (or) 3% (Phase to Netural) 415 V +/- 1% (or) 3% (Line to Line)
Frequency
47 Hz - 53 Hz
Protections
O/P high/low Voltage cut-off
O/P Overload cut-off
Standard kVA ratings
3 kVA - 1000 kVA
Optional
EMI / RFI Filter
Surge Arrester
Working Range
Working range will be depends on cutoff percentage as per factory settings.
Low-cutoff percentage 15%, 12.5%, 10%, 7.5% & 5%.
High-cutoff percentage 12.5%, 10%, 7.5% & 5%.
Input Voltage Range & Regulation Range
178 V - 280 V (Phase to Netural) 310 V - 480 V (Line to Line)
Output Voltage
240 V +/- 1% (or) 3% (Phase to Netural) 415 V +/- 1% (or) 3% (Line to Line)
Frequency
47 Hz - 53 Hz
Protections
O/P high/low Voltage cut-off
O/P Overload cut-off
Standard kVA ratings
3 kVA - 1000 kVA
Optional
EMI / RFI Filter
Surge Arrester
Working Range
Working range will be depends on cutoff percentage as per factory settings.
