This is an ideal product for larger homes with a three phase supply. Reap the benefits of a good power supply. Less demanding loads which does not require instant voltage correction, which are tolerant to momentary voltage variations like motors, ACs, AC plants can get the best out of EMM's Servo controlled voltage stabilisers. For Residence and offices it is supplied without single phasing preventers.
Three Phase Servo Stabilisers for homes, for SOHOs, and office premises enhances the quality of performance.
For your villa homes. Do away with your unreliable relay stabiliers connected to individual loads.
For workshops and small factories
For hospitals
The above units do not have single phasing prevention. Each phase is monitored separately and cut off for individually.
For CNC machine
For cranes
Overall factory lighting especially the shop floor. Servo stabilisers can reduce your lighting bill 10%.

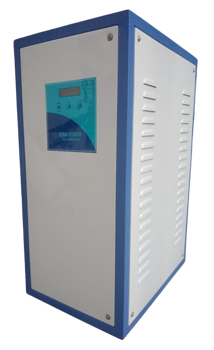

Three Phase Servo Aircooled Residental
Microcontroller based control system.
RMS Correction
Display Parameters (3 Display Single line 4digits)
LCD Display
Input Voltage
Output Voltage
Output Current
Frequency
Stabilizer Status
No user setting
Input Voltage Range & Regulation Range
295 V - 465 V (L-L) 170 V - 270 V (L-N)
Output Voltage
400 V +/- 1% (or) 3%
Frequency
47 Hz - 53 Hz
Protections
O/P high/low Voltage cut-off
O/P Overload cut-off
Standard kVA ratings
3 kVA - 150 kVA
Optional
EMI / RFI Filter
Surge Arrester
Working Range
Working range will be depends on cutoff percentage as per factory settings.
Low-cutoff percentage 15%, 12.5%, 10%, 7.5% & 5%.
High-cutoff percentage 12.5%, 10%, 7.5% & 5%.
Input Voltage Range & Regulation Range
295V - 465V / 340V – 480V / 360V – 460V
Output Voltage
400 V, 415 V +/- 1% (or) 3%
Frequency
47 Hz - 53 Hz
Protections
O/P high/low Voltage cut-off
O/P Overload cut-off
Standard kVA ratings
3 kVA - 150 kVA
Optional
MCB
Surge Arrester
Working Range
Working range will be depends on cutoff percentage as per factory settings.
Low-cutoff percentage 15%, 12.5%, 10%, 7.5% & 5%.
High-cutoff percentage 12.5%, 10%, 7.5% & 5%.
Input Voltage Range
130 V - 255 V
Output Voltage
400 V +/- 1% (or) 3%
Frequency
47 Hz - 53 Hz
Protections
O/P high/low Voltage cut-off
O/P Overload cut-off
Standard kVA ratings
3 kVA - 150 kVA
Optional
EMI / RFI Filter
Surge Arrester
Working Range
Working range will be depends on cutoff percentage as per factory settings.
